Overview
Are you ready to take your AI edge system to the next level? By qualifying your hardware through the Intel® Edge System Qualification (ESQ) for Intel® AI Edge System, you ensure your solution is fully interoperable with Intel’s Edge AI Libraries and sized for optimal performance—whether Entry, Mainstream, Efficiency Optimized, or Scalable Performance.
System Requirements
Streamline Your Edge AI System Qualification with 3 Tiers, Endless Possibilities
To qualify as an Intel® AI Edge System under the ESQ program, platforms must meet rigorous benchmarks for performance, reliability, and scalability. These benchmarks are organized into three performance tiers — Mainstream & Entry, Efficiency Optimized, and Scalable Performance — helping solution builders select systems that align with their application needs and deployment scale.
Power large-scale Vision AI and Generative AI deployments across warehouses, retail stores, and datacenters with verified edge-ready platforms.
Xeon-Based Systems
Built for enterprise-grade AI workloads, multi-stream processing, and high-throughput deployments.
Processors:
- 5th Gen Intel® Xeon® Scalable Processors
- Intel® Xeon® 6 Processors
- Intel® Xeon® W Processors
Key Specs:
- SKU: Dual and Single Socket
- Minimum Cores: 32 cores
- TDP: 250 watts
AI Features:
- Intel® Advanced Matrix Extensions (Intel® AMX)
- Intel® Advanced Vector Extensions 512 (Intel® AVX-512)
- System Memory: Minimum 512 GB DDR5, 5600 MT/s (1DPC)
Discrete GPU Options:
- Intel® Arc™ A750
- Intel® Arc™ A770
- Intel® Arc™ B580
- Intel® Arc™ Pro B60 Graphics
- Intel® Arc™ Pro B50 Graphics
Core-Based Systems
Optimized for high-performance edge deployments with advanced AI capabilities.
Processors:
- Intel® 14th Gen Core™ Processors
- Intel® Core™ Series 2
- Intel® Core™ Series 1
Key Specs:
- Minimum Cores: 8 Performance-cores (P-cores)
- TDP: 65 watts
AI Features:
- Intel® Advanced Vector Extensions 2 (Intel® AVX2)
- System Memory: Minimum 64 GB DDR5
Discrete GPU Options:
- Intel® Arc™ A750
- Intel® Arc™ A770
- Intel® Arc™ B580
Intel® Core Ultra-Based Systems
Balanced for performance and power efficiency, ideal for mid-scale Edge AI deployments.
See All Core Ultra-Based Systems
Processors:
- Intel® Core™ Ultra Series 1
- Intel® Core™ Ultra Series 2
Graphics:
- Integrated GPU with 7 Xe-Cores or more
Key Specs:
- SKU: Single Socket
- Minimum Cores: 8 Performance-cores (P-cores)
- TDP: 28 watts
AI Features:
- Intel® Advanced Vector Extensions 2 (Intel® AVX2)
System Memory:
- Minimum 32 GB DDR5 (Dual Channel)
- Recommended speed: 5600 MT/s
These systems are designed to deliver reliable compute performance, real-time control, and low power consumption, making them ideal for single-function embedded applications such as Point-of-Sale (POS) terminals, digital signage, programmable logic controllers (PLCs), and interactive kiosks.
Mainstream
Processors:
- Intel® 14th Generation Core™ Processors
- Intel® Core™ Series 2
- Intel® Core™ Series 1
Key Specs:
- Minimum Cores: 8 Performance-cores (P-cores)
- TDP: 65 watts
AI Features:
- Intel® Advanced Vector Extensions 2 (Intel® AVX2)
- System Memory: Minimum 64 GB DDR5
Entry
Processors:
- Intel® Processor for Desktop
- Intel® Processor U-series
- Intel® Processor N-series
Key Specs:
- TDP: 15–35 watts (depending on series)
AI Features:
- Intel® AVX2
- System Memory: Minimum 32 GB DDR5 (recommended for light AI workloads)
Get Started
Here’s the step-by-step guide to qualify your system as Intel® AI Edge System v11.2.3.
Click here to download an offline copy of the qualification process.
Prepare the System by Installing
- Ubuntu 24.04* Desktop Operating System
- System drivers from Edge Developer Kit Reference Scripts
- Setting Up Hugging Face Token for Llama-3.1-8B-Instruct repository
- And installing python3.12-venv package
Setup packages on Ubuntu:

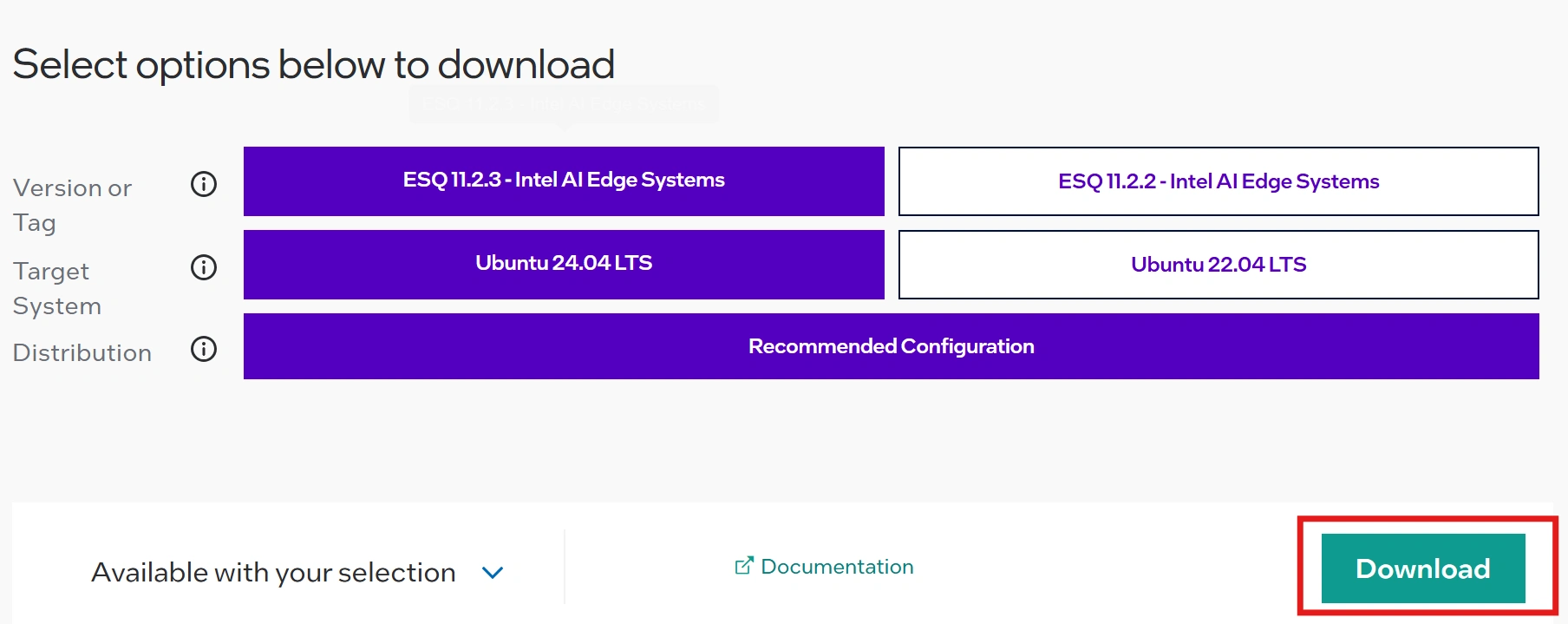

sudo apt-get install libnuma-dev python3-dev jq python3.12-venv2a. Download a copy of Intel® ESQ for AI Edge Systems v11.2.3 from Edge Software Catalogue
Click the image for the full view.

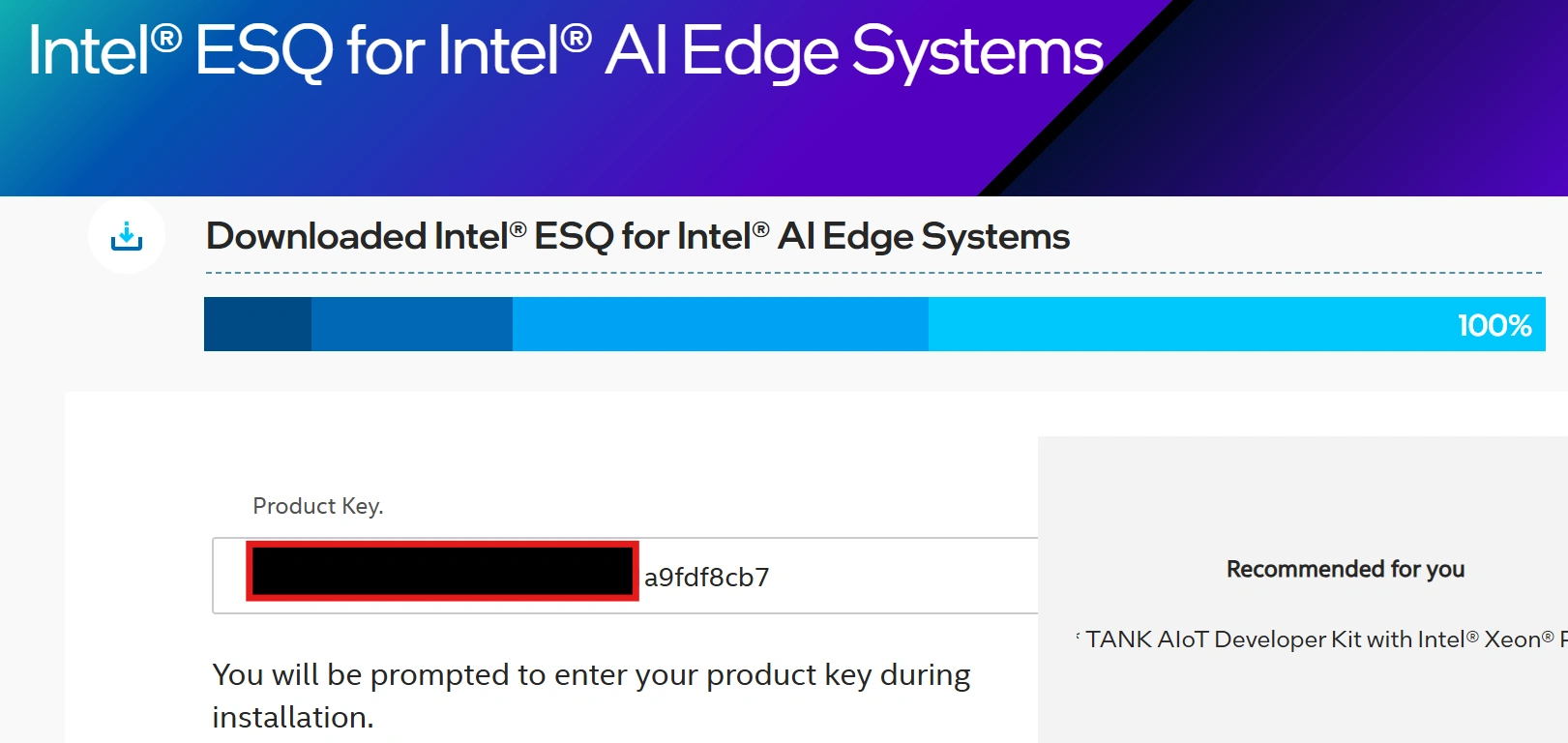

2b. Remember to copy the product key that will be needed to complete the installation.
Click the image for the full view.
Unzip the ESQ Package and begin installation as shown below.
unzip edge_system_qualification.zip
cd edge_system_qualification
chmod +x edgesoftware
python3 -m venv venv
./edgesoftware installSystem will reboot automatically once installation has completed.
Before running qualification step, be sure to obtain hugging face token – for hugging face steps, go here
export Hugging Face token for Llama-3.1-8B-Instruct and run your system’s qualification as shown below.
export HF_TOKEN=<your-huggingface-token>

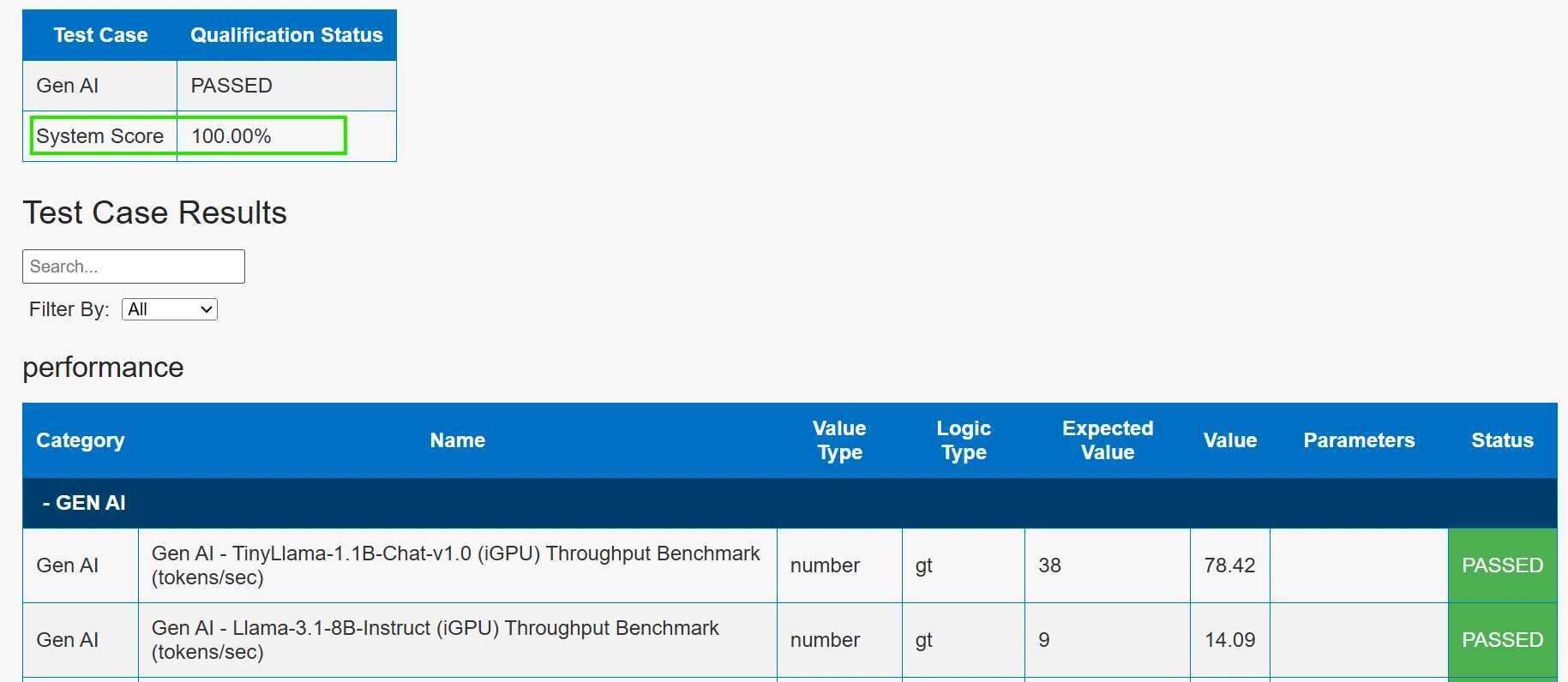

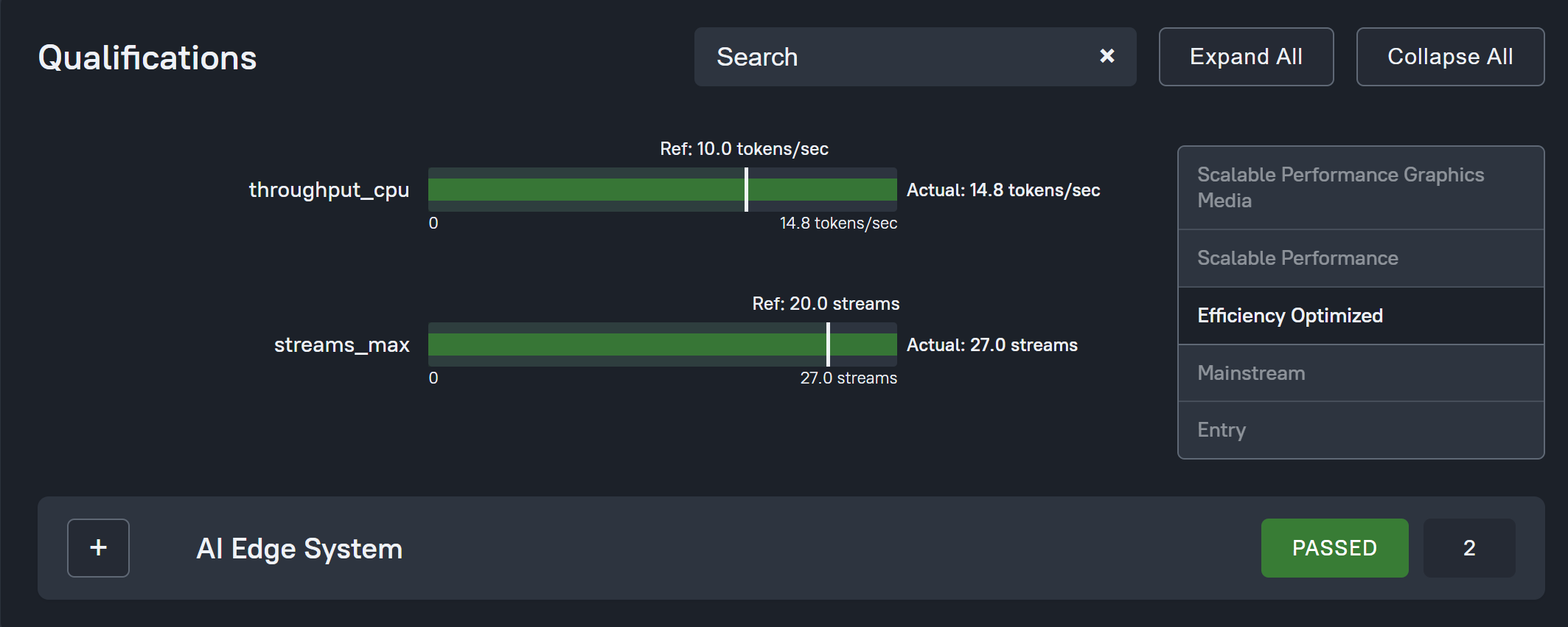

esq runOnce the qualification suite completes successfully, it generates a html report indicating the system score and scores of Vision AI and Gen AI performance benchmarks.
If the System Score is 90% and above, the system is considered qualified and eligible for submission. Click here to Submit your Qualified System’s Test Report
We offer support for Intel partners whose system scored below 90%, via Intel Premier Support.
Just raise support ticket and select the following product and categories for correct case dispositioning.
- Product as “Intel® Edge Software Recipes”
- Category as “Software/Driver/OS”
- Sub-Category as “Intel® Edge System Qualification”
Click the image for the full view.
Vertical Application Benchmark
Edge AI is not one-size-fits-all. Whether you're an end-user, system integrator, or application builder, your success depends on choosing a platform that delivers the right balance of performance, efficiency, and scalability — for your specific vertical.
That’s why we’ve introduced vertical benchmarking: a performance-first approach that helps you select the ideal system based on your workload and deployment goals.
Choose the System That Matches Your Retail Needs-
Explore the System Tiers that Meets Your use-case expectations for retail.
Mainstream & Entry For small stores and pilot deployments
- Ideal for point-of-sale terminals, kiosks, and single-screen digital signage
- Cost-effective and easy to deploy
- Supports basic shelf monitoring and single-camera checkout
Efficiency Optimized for mid-sized retail environments
- Powers smart POS systems with automated self-checkout
- Supports smart kiosks running medium-sized LLMs
- Handles multi-camera loss prevention and customer flow tracking
- Balanced performance for real-time analytics in dynamic retail spaces
Scalable Performance (Add this tier if needed for large-scale retail chains or enterprise deployments)
- Supports multi-zone analytics, generative AI for customer interaction, and advanced inventory intelligence
- Designed for high-throughput, multi-modal workloads, and enterprise-grade scalability
Smarter Production Starts Here
Delivering Manufacturing Use-Cases Edge AI System Tiers
Mainstream & Entry
- For basic inspection tasks and small-scale operations.
- Ideal for single-camera defect detection and pilot setups.
- Example: Single Camera Pallet defect detection using lightweight models.
Efficiency Optimized
- For mid-sized factories and multi-line operations.
- Balanced compute for real-time inspection and analytics.
- Example: Weld porosity detection, time-series analysis for maintenance.
Scalable Performance
- For enterprise-grade industrial automation.
- Supports multi-sensor fusion, generative AI, and high-throughput pipelines.
- Example: Vision + LLM integration for augmented worker guidance and predictive diagnostics.
Metro AI Suite – Performance That Scales With Your Vision
Choose the platform that aligns with your deployment to deliver smart cities and transportation requirements:
Mainstream & Entry
- For basic deployments and pilot projects.
- Cost-effective, reliable, and easy to scale.
- Ideal for loitering detection, smart parking, and simple video search.
Efficiency Optimized
- For mid-scale deployments with balanced performance.
- Designed for real-time responsiveness and energy efficiency.
- Ideal for smart intersections, tolling systems, and traffic analytics.
Scalable Performance
- For enterprise-grade, high-throughput applications.
- Supports complex workloads and multi-sensor fusion.
- Ideal for generative AI video summarization, multimodal search, and city-wide monitoring.
Submit your Qualified System’s Test Report
You're almost there! Submit your qualified system test report by clicking the button below, include your system details and attach your qualification report to complete the process.
Submit Your ESQ Test Report
Support
Support is available via Intel Premier Support for Intel partners whose systems did not meet the 90% system score threshold
For correct case disposition, please select the following products and categories.
- Product “Intel® Edge Software Recipes”
- Category as “Software/Driver/OS”
- Sub-Category as “Intel® Edge System Qualification”
